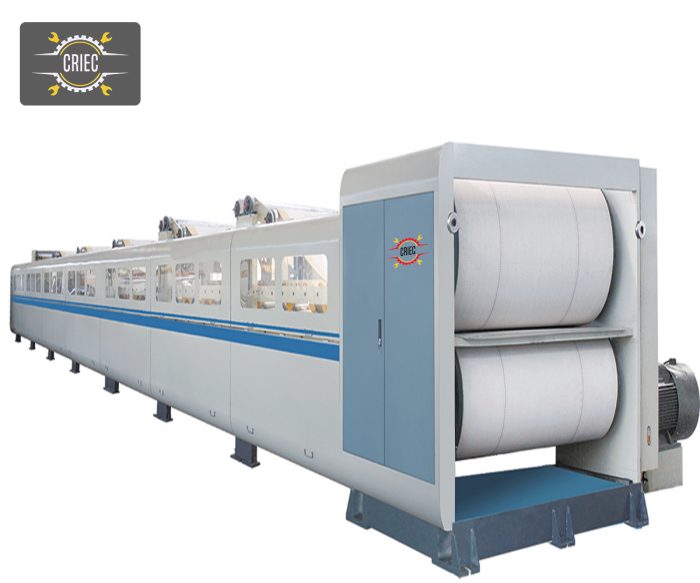

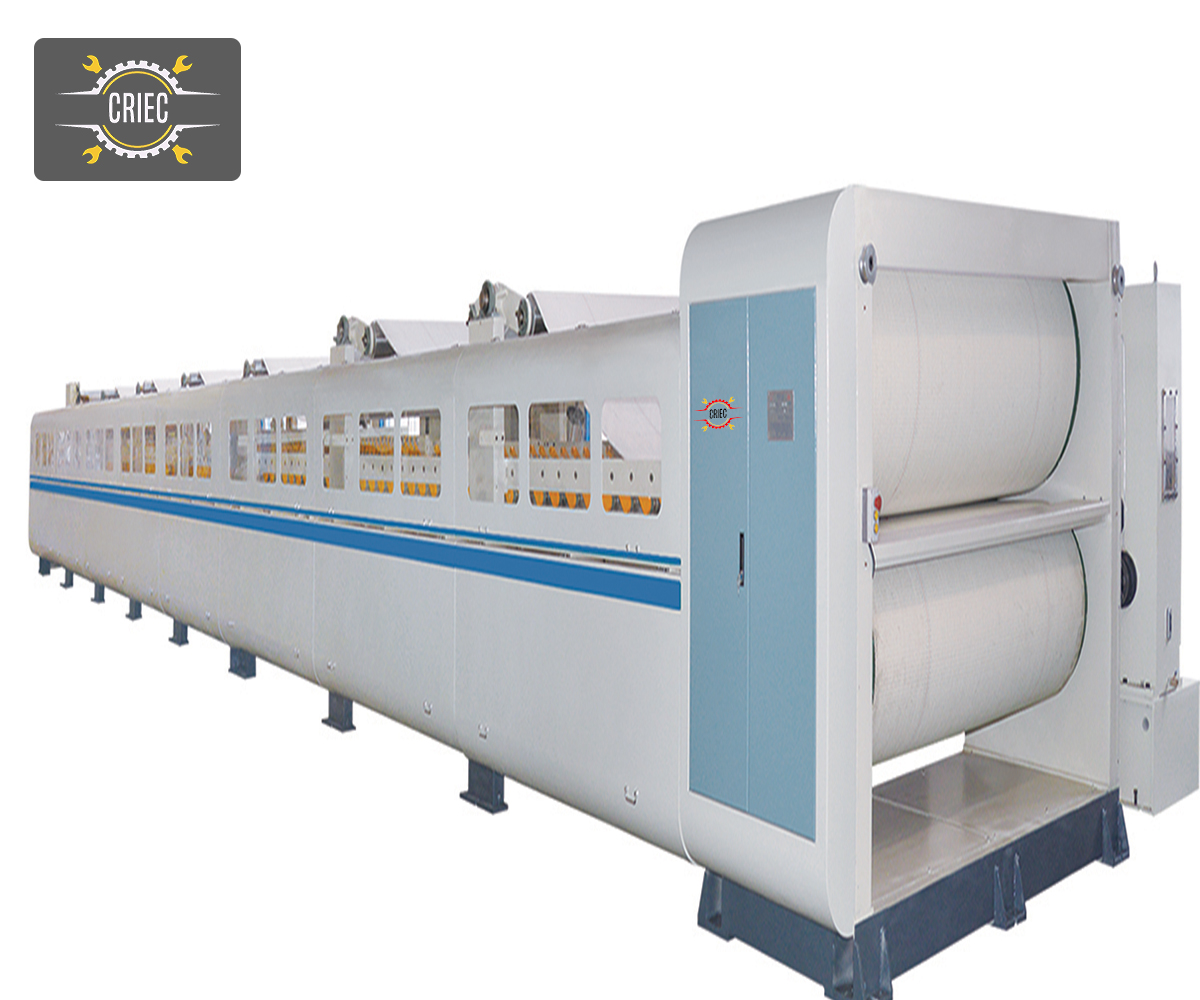

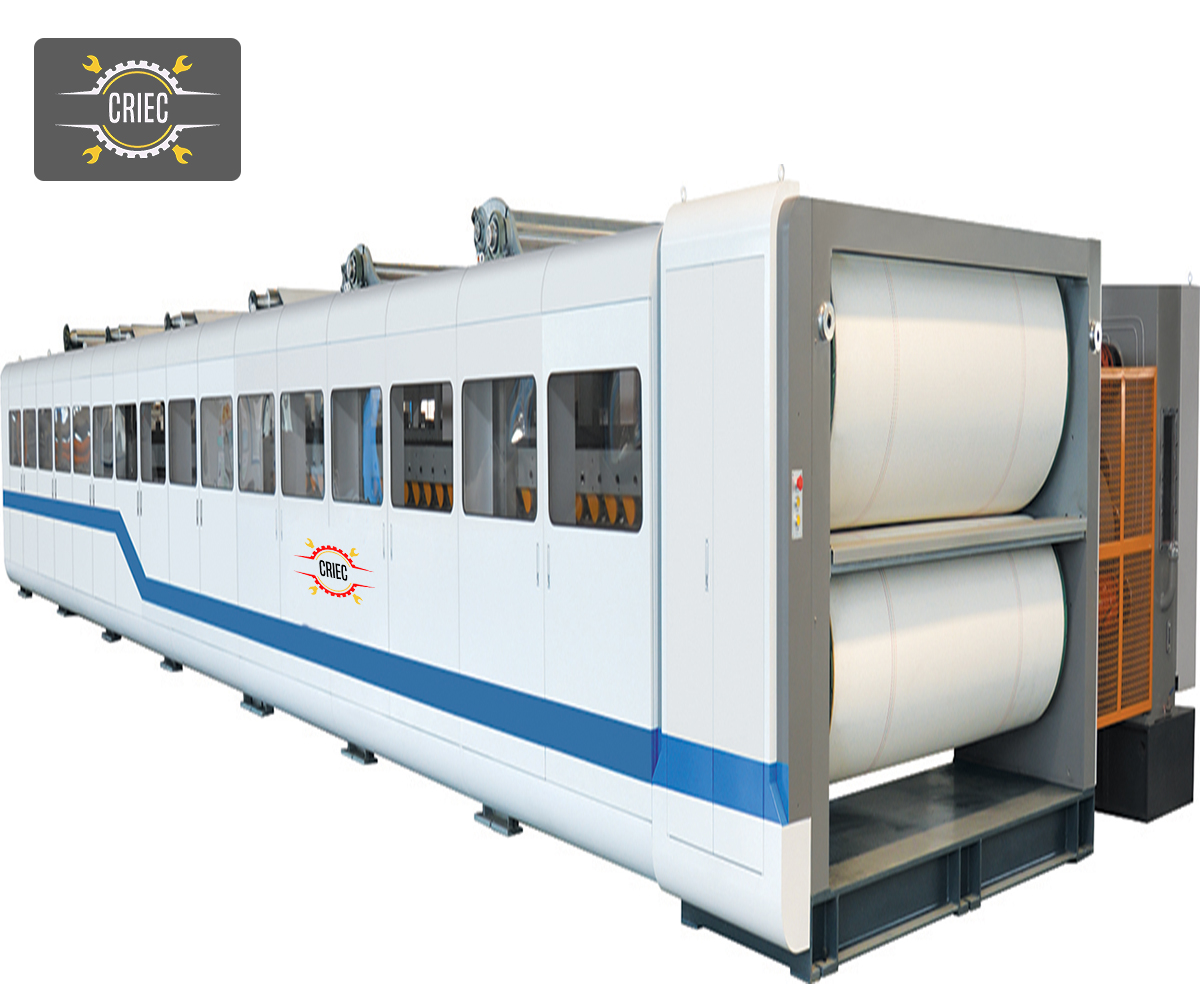

SM3 Type Double Facer
* Hot plate pressure roller adopt intensive type, pressure can adjust by section.
Spring pressure shoes and air bag pressure shoes are optional as customer special requirement.
* Lift adopt hydraulic power. Hydraulic mechanism hide under cover, according to the production of corrugated board layers of sub-pressure, help maintain the appropriate pressure cardboard shape.
* Heating plate temperature digital display
* Down cotton belt adopt S shape manual correcting tensioning mechanism, simple structure and easy operation
* Stype Hand tension device and pneumatic tension device are adopted on the up cotton fabric bele; with simple and practical structure.
* The imported air sac correcting system is optional for the cotton belt cotton.
(SM3 type)
* Cooling unit adopts up and down intensive rollers design.
* The machine adopts PLC control, advanced human-machine interface for direct digital display the machine speed.
* Steam piping and a reasonable number of layers according to the speed achieved cardboard hot-plate group thermostat.
* Working width: 2200mm.
* SM3 Max speed: 150m/min, 200m/min;
* Maximum width: 1800mm.
